Industrial Coupling

• Application
• Mechanical Power Transmission

• Bore
• Customized as per requirement

• Connection
• Other, Flange Type

• Head Code
• Other, Standard

• Inner Diameter
• 20 mm to 800 mm

• Material
• Other, Alloy Steel / Carbon Steel

• Max. Speed
• Up to 6000 RPM

• Outer Diameter
• Up to 1100 mm

• Sealing
• O-ring / Oil Seal (optional)

• Shape
• Round

• Standard
• AGMA / IS / DIN

• Structure
• Other, Flexible Gear Coupling

• Surface Treatment
• Other

• Technique
• Other, Precision Machining

• Thread
• No Threads

• Torque
• Up to 19,000 Nm

• Application
• Used for joining two shafts together in a precise, rigid manner for power transmission systems.

• Bore
• H7 precision bore

• Connection
• Other, Clamp or set screw type

• Head Code
• Round

• Inner Diameter
• 6 mm to 75 mm (customizable)

• Material
• Other, Mild steel, Stainless steel, or Aluminum Alloy

• Max. Speed
• Up to 4000 RPM

• Outer Diameter
• 12 mm to 100 mm or as per requirement

• Sealing
• None required

• Shape
• Other, Cylindrical

• Standard
• DIN, ISO, or customized

• Structure
• Other, Solid, one-piece body

• Surface Treatment
• Other, Polished or black oxide finish for corrosion resistance.

• Technique
• Other, Machined

• Thread
• None (solid coupling)

• Torque
• Up to 950 Nm, varies with size and material

• Application
• Machinery, Pumps, Compressors, Industrial Power Transmission

• Bore
• Customized as per requirement (Pilot/Finished/Keyway)

• Connection
• Other, Flexible (Spacer Type)

• Head Code
• Other, Standard

• Inner Diameter
• 12 mm - 180 mm (as per design)

• Material
• Other, Forged Steel, Cast Iron, Stainless Steel, or as per request

• Max. Speed
• 2800 RPM (depending on size and material)

• Outer Diameter
• 60 mm - 400 mm

• Sealing
• No Seal / Not Required

• Shape
• Round

• Standard
• DIN/ISO/Custom

• Structure
• Other, Spacer Coupling - Rigid with Detachable Spacer

• Surface Treatment
• Other, Anti-corrosive Coating / Blackodised

• Technique
• Other, Machined

• Thread
• No Thread / Not Applicable

• Torque
• 80 Nm to 11500 Nm (as per model)

• Application
• Mechanical Power Transmission

• Bore
• Pilot Bore / Finished Bore

• Connection
• Other, Shaft Coupling

• Head Code
• Other, Standard

• Inner Diameter
• 10 mm - 280 mm

• Material
• Other, Cast Iron / Steel

• Max. Speed
• Up to 4800 rpm

• Outer Diameter
• Up to 640 mm

• Sealing
• Rubber Element (Elastomer) Insert

• Shape
• Round

• Standard
• DIN 740

• Structure
• Other, Flexible Jaw Coupling

• Surface Treatment
• Other

• Technique
• Casting

• Torque
• 30 Nm - 128,000 Nm

• Application
• Power Transmission, Conveyor Systems, Industrial Machinery

• Bore
• Pilot Bore/H7

• Connection
• Other, Shaft Coupling

• Head Code
• Other, Standard

• Inner Diameter
• 20 mm to 120 mm

• Material
• Other, Carbon Steel/Alloy Steel

• Max. Speed
• Up to 1500 RPM

• Outer Diameter
• 60 mm to 200 mm

• Sealing
• No Sealing

• Shape
• Round

• Standard
• ISO/GB

• Structure
• Other, Double Roller Chain with Two Coupling Halves

• Surface Treatment
• Other

• Technique
• Other, Machined & Hardened

• Torque
• Up to 4500 Nm

• Application
• Power transmission in industrial machines, pumps, compressors, and conveyors

• Bore
• Pilot Bore, Finished Bore available

• Connection
• Other, Pin Bush & Flange Coupling

• Head Code
• Round

• Inner Diameter
• 10 mm to 300 mm

• Material
• Other, Cast Iron / Steel with Rubber Bushes

• Max. Speed
• Up to 5000 RPM

• Outer Diameter
• Up to 700 mm

• Sealing
• Rubber Bush Inserted

• Shape
• Round

• Standard
• IS 2693, DIN 740

• Structure
• Other, Flexible, Flanged

• Surface Treatment
• Other

• Technique
• Other, Machined

• Thread
• Not Applicable (uses pins and bushes for connection)

• Torque
• Up to 55,000 Nm

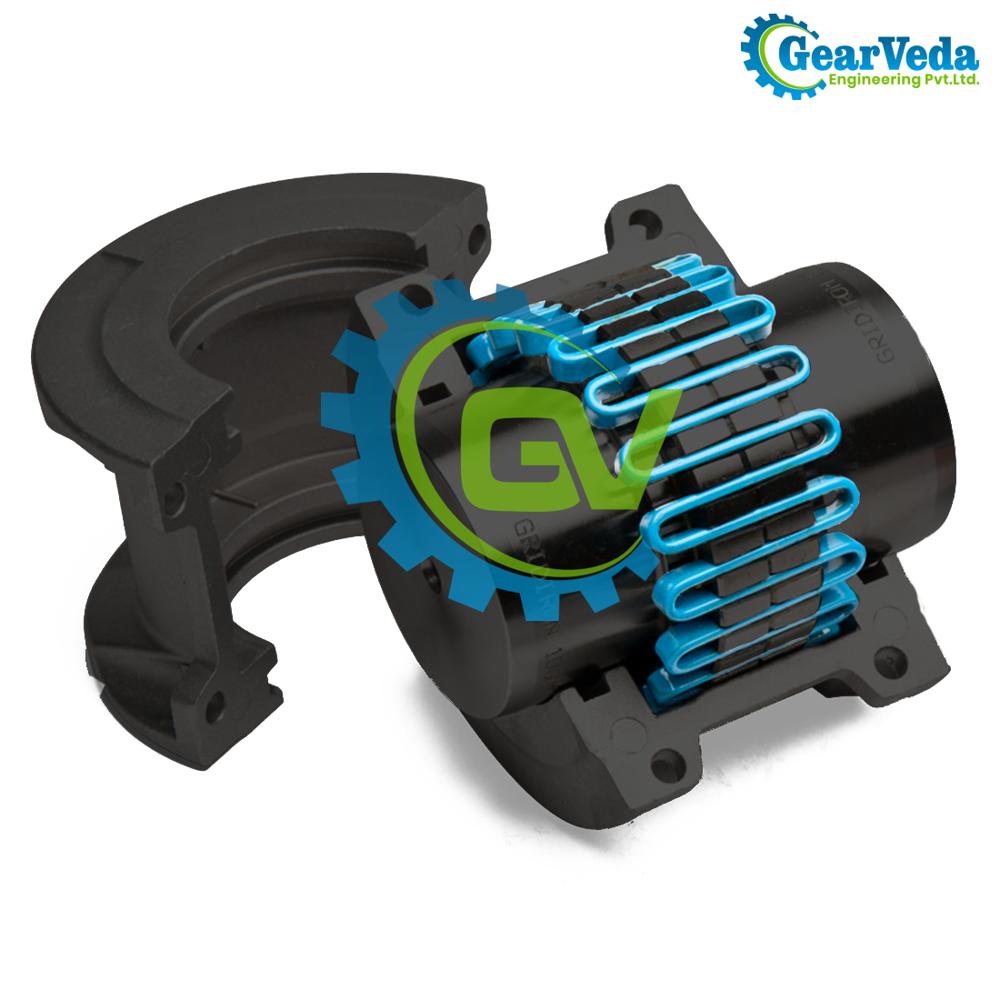

• Application
• Power Transmission, Conveyors, Pumps, Compressors, Generators

• Bore
• Pilot, Finished or Custom

• Connection
• Other, Grid

• Head Code
• Other, Standard

• Inner Diameter
• 20 mm to 340 mm (varies by model)

• Material
• Other, Alloy Steel, Cast Iron, High-strength Steel Grid

• Max. Speed
• Up to 7500 RPM

• Outer Diameter
• Depends on coupling size, up to 650 mm

• Sealing
• Grease Packed with Sealing Covers

• Shape
• Other, Grid Type Coupling

• Standard
• IS 5228, AGMA, DIN

• Structure
• Other, Flexible Coupling with Metallic Grid

• Surface Treatment
• Other

• Technique
• Other, Machined and Precision Cast

• Torque
• Up to 180000 Nm

• Application
• Industrial Power Transmission

• Bore
• Standard/Custom as per requirement

• Connection
• Other, Flanged

• Head Code
• Other, Standard

• Inner Diameter
• 30 mm to 120 mm

• Material
• Other, Cast Iron, Steel

• Max. Speed
• 3600 rpm

• Outer Diameter
• Up to 400 mm (varies with model)

• Sealing
• Oil Tight

• Shape
• Round

• Standard
• ISO / DIN

• Structure
• Other, Closed

• Surface Treatment
• Other

• Technique
• Other, Machined

• Torque
• 100 Nm to 10000 Nm

• Application
• Mechanical Power Transmission, Pumps, Compressors, Conveyors, Mixers, and General Industrial Machinery

• Bore
• Bored to Size (Customized as per Shaft)

• Connection
• Other

• Head Code
• Round

• Inner Diameter
• 6 mm to 60 mm Millimeter (mm)

• Material
• Other

• Max. Speed
• Up to 3600 RPM RPM

• Outer Diameter
• 30 mm to 120 mm Millimeter (mm)

• Sealing
• Elastomer Spider Element

• Shape
• Round

• Standard
• ANSI/DIN/ISO

• Structure
• Other

• Surface Treatment
• Blacking

• Technique
• Casting

• Torque
• Up to 400 Nm depending on size N-cm

• Usage
• Industrial

• Application
• Power transmission, pumps, compressors, conveyors, and general machinery

• Bore
• Pilot or finished bore available as per requirement

• Connection
• Other, Shaft-to-shaft coupling

• Head Code
• Other, Standard

• Inner Diameter
• 12 mm to 100 mm

• Material
• Other, Cast iron, steel, or as specified

• Max. Speed
• 3500 rpm to 7000 rpm based on size

• Outer Diameter
• Up to 250 mm depending on model

• Sealing
• Elastomeric flexible insert

• Shape
• Round

• Standard
• BS 3170, IS 8603 or equivalent

• Structure
• Other, Jaw coupling with rubber element

• Surface Treatment
• Other, Phosphated or Blackodized

• Technique
• Other, Machined

• Torque
• 68 Nm to 3150 Nm

• Application
• Mechanical power transmission, pump and motor drives, industrial machinery couplings

• Bore
• Pilot bore (can be machined to required size), Standard range 8 mm to 60 mm

• Connection
• Other, Jaw type (insert between two metallic hubs, flange connection possible)

• Inner Diameter
• Varies based on model (commonly 8 mm to 60 mm)

• Material
• Other, Nylon (Polyamide 6 or equivalent engineering plastic)

• Max. Speed
• Up to 8500 RPM (depends on model and size)

• Outer Diameter
• Ranges typically from 40 mm to 120 mm

• Sealing
• Non-sealing, open design

• Shape
• Other, Cylindrical with internal teeth/projections

• Standard
• DIN 740/ISO 5296 (or as per manufacturer)

• Structure
• Other, Flexible jaw coupling sleeve/element

• Surface Treatment
• Other

• Technique
• Other, Injection Molded

• Torque
• From 10 Nm to 250 Nm (varies by size and application)

• Application
• Used for connecting encoder shafts to rotating equipment for precise motion control

• Bore
• 6 mm to 12 mm

• Connection
• Other, Clamp or Set Screw

• Head Code
• Round

• Inner Diameter
• 6 mm - 12 mm (customizable)

• Material
• Other, Aluminum Alloy or Stainless Steel

• Max. Speed
• Up to 8000 rpm

• Outer Diameter
• 22 mm - 28 mm

• Sealing
• Non-Sealed

• Shape
• Other, Cylindrical

• Standard
• DIN/ISO Standard

• Structure
• Other, Flexible Coupling

• Surface Treatment
• Other

• Technique
• Other, CNC Machined

• Thread
• No thread

• Torque
• 0.5 to 5 Nm

• Application
• Industrial Power Transmission

• Bore
• Pilot Bore / Finished Bore as per requirement

• Connection
• Other, Shaft Mounted with Key and Set Screw

• Head Code
• Other, Drum type with Hub

• Inner Diameter
• 50 mm to 300 mm

• Material
• Other, Cast Iron / Cast Steel

• Max. Speed
• 1500 RPM

• Outer Diameter
• 120 mm to 600 mm

• Sealing
• No Sealing

• Shape
• Other, Round Cylindrical

• Standard
• IS 2973 / Customized

• Structure
• Other, Drum Coupling with Spider / Element

• Surface Treatment
• Other

• Technique
• Other, Cast and Machined

• Torque
• 100 Nm to 30,000 Nm

• Application
• Automobile, Agricultural Machinery, Industrial Equipment

• Bore
• Customized

• Connection
• Other, Mechanical Coupling

• Head Code
• Round

• Inner Diameter
• 25 mm

• Material
• Other, Alloy Steel

• Max. Speed
• 4000 RPM

• Outer Diameter
• 75 mm

• Sealing
• Grease Packed with Dust Seal

• Shape
• Other, Cross / Yoke

• Standard
• DIN / ISO / OEM

• Structure
• Other, Cross

• Surface Treatment
• Other, Polished

• Technique
• Other, Machined

• Thread
• No Thread

• Torque
• 1000 Nm
